CONDOR

AUTOMATIC TAPING MACHINE

FAST AND GENTLE
EASY TO SANITISE
SIMPLE AND INTUITIVE TO USE
  • Condor is an automatic machine designed for applying an adhesive-tape band to loose products (delicate ones too).
  • The products are manually loaded on specific compartments called “cradles”. The cradles are mounted on a pair of chains which advance simultaneously. The operators in charge of the loading can be positioned on the machine rear and/or on both sides. Once loaded, the product is carried towards the taping station and then ejected on a soft conveyor.
  • Condor is extremely versatile and can be configured with 1 or 2 taping devices (that can be positioned laterally and/or centrally) and with different types of cradles. It is completely in stainless steel (except from the taping devices) and has IP55 protection.
IDEAL FOR:

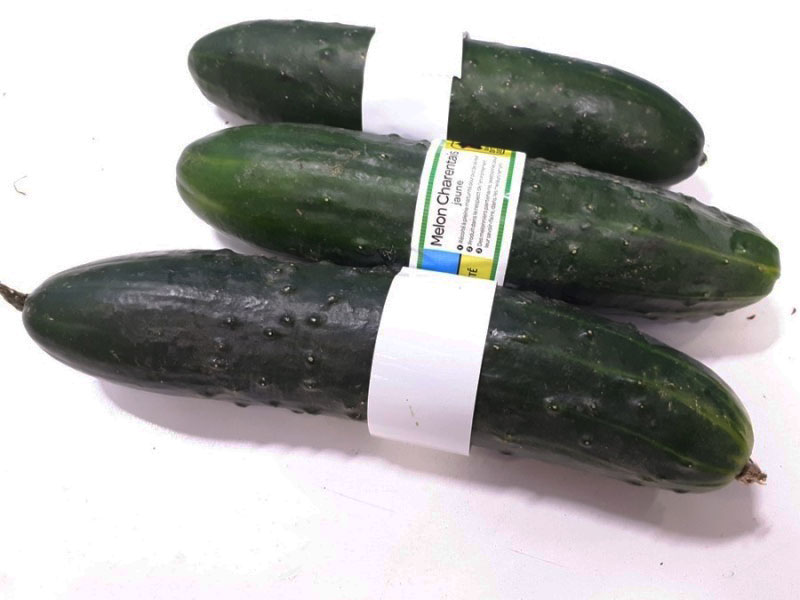

elongated products in bunches (bananas, leeks, celeries) and spherical ones (melons, coconuts, small watermelons, pineapples).

Do you need further information about our machines?

Contact us
TECHNICAL FEATURES
  • 4,3” touch-screen colour panel
  • Possibility of using PP, paper, compostable, peelable or self-adhesive tape
  • Tape dispenser with peel rewinder and end-of-material-detection sensor
  • Tape capacity (each channel): 620 m (about 44 minutes of autonomy)
  • Tape width: from 19 to 38 mm
  • Tape application in case of product presence only (automatically and for each channel)
  • Independent taping devices, selectable from the interface
  • Maximum product height: 200 mm
  • Product width: max 270 with 2 channels / min 90 mm
  • Standard-cradle diameter: 160 mm
  • No product weight limits
  • IP55 all-stainless-steel structure (except for the taping devices)
  • High production continuity and minimum maintenance
  • Extremely low energy consumption (1,5 kW)
  • Possibility of symmetrical mounting (whether not specified, the machine is intended with the operator panel on the left)
  • Maximum-configuration weight: 705 kg
  • Machine size for the transport: 4400x1100x2000 mm (LxWxH)
OPTIONALS
  • Weigh-price device with adhesive-label applicator
  • Mounting on wheels (H +30 mm)
COMPLEMENTARY PRODUCTS
  • Rotating tables (Twister)
  • Outgoing-product collection belts
  • Checkweighers (C-Box)
