EAGLE

AUTOMATIC TAPING MACHINE

FAST, RELIABLE AND FLEXIBLE
EASY AND INTUITIVE TO USE
POSITIONABLE ON PRE-EXISTING LINES
  • Eagle is an automatic machine born for applying an adhesive-tape band to loose products.
  • The products are manually loaded on specific compartments called “cradles”. The cradles are mounted on a pair of chains which advance simultaneously. The operators in charge of the loading can be positioned on the machine rear and/or on both sides. Once loaded, the product is carried towards the taping station and then ejected.
IDEAL FOR:

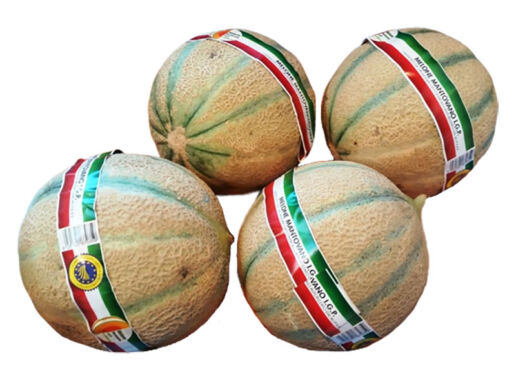

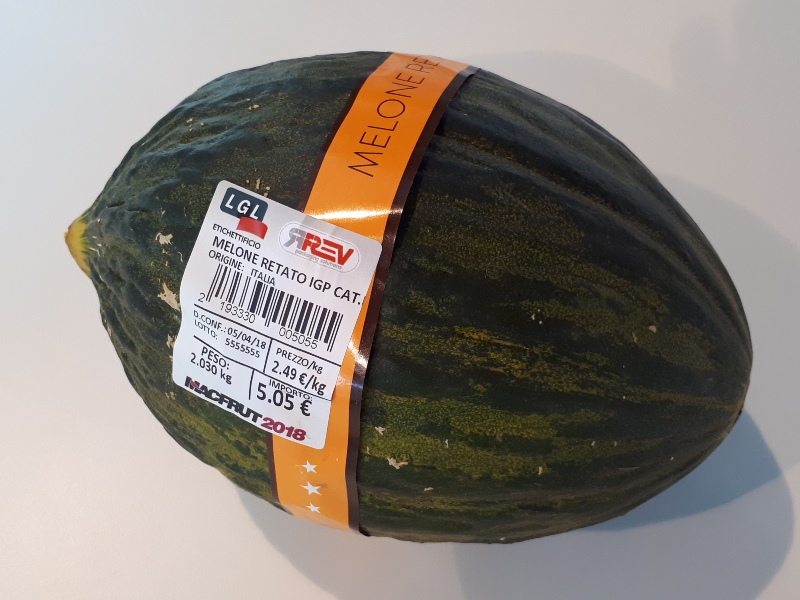

spherical products such as melons, small watermelons, pineapples and coconuts.

Do you need further information about our machines?

Contact us
TECHNICAL FEATURES
  • 4,3” colour touch-screen panel
  • Possibility of using PP, paper, compostable, peelable or self-adhesive tape
  • Tape dispenser with peel rewinder and end-of-material-detection sensor
  • Tape capacity (each channel): 620 m (about 44 minutes of autonomy)
  • Sensor for detecting the passing of the product maximum height
  • Sensor for detecting the product presence, in order to optimise the production
  • Tape application in case of product presence only (automatically and for each channel)
  • Independent taping devices selectable from the interface
  • Recommended-load indicator light, for minimising the tape consumption on both channels equally
  • Maximum product height: 200 mm
  • Product width: max 270 / min 85 mm
  • No product weight limits
  • Parts touching the product made of materials suitable for food contact
  • High production continuity and minimum maintenance
  • Extremely low energy consumption
  • Compact size
  • Possibility of symmetrical mounting (whether not specified, the machine is intended with the operator panel on the left)
  • Maximum-configuration weight: 428 kg
  • Machine size for the transport: 3300x900x1850 mm (LxWxH)
  • Maximum production: 56 o 28 pcs/min. (with 1 or 2 lanes)
OPTIONALS
  • Mounting on wheels (H +30 mm)
  • Weigh-price device with adhesive-label applicator
COMPLEMENTARY PRODUCTS
  • Rotating tables (Twister)
  • Outgoing-product collection belts
